FLAME PROOF FIRE ALARM STATION

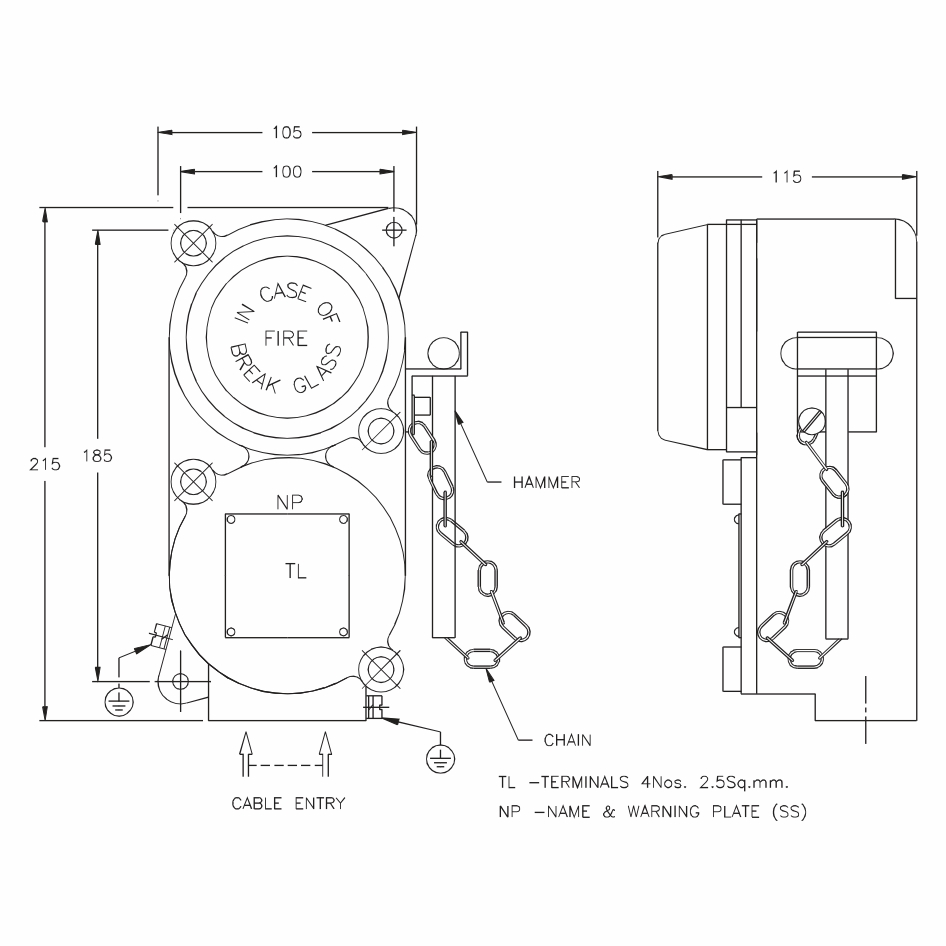

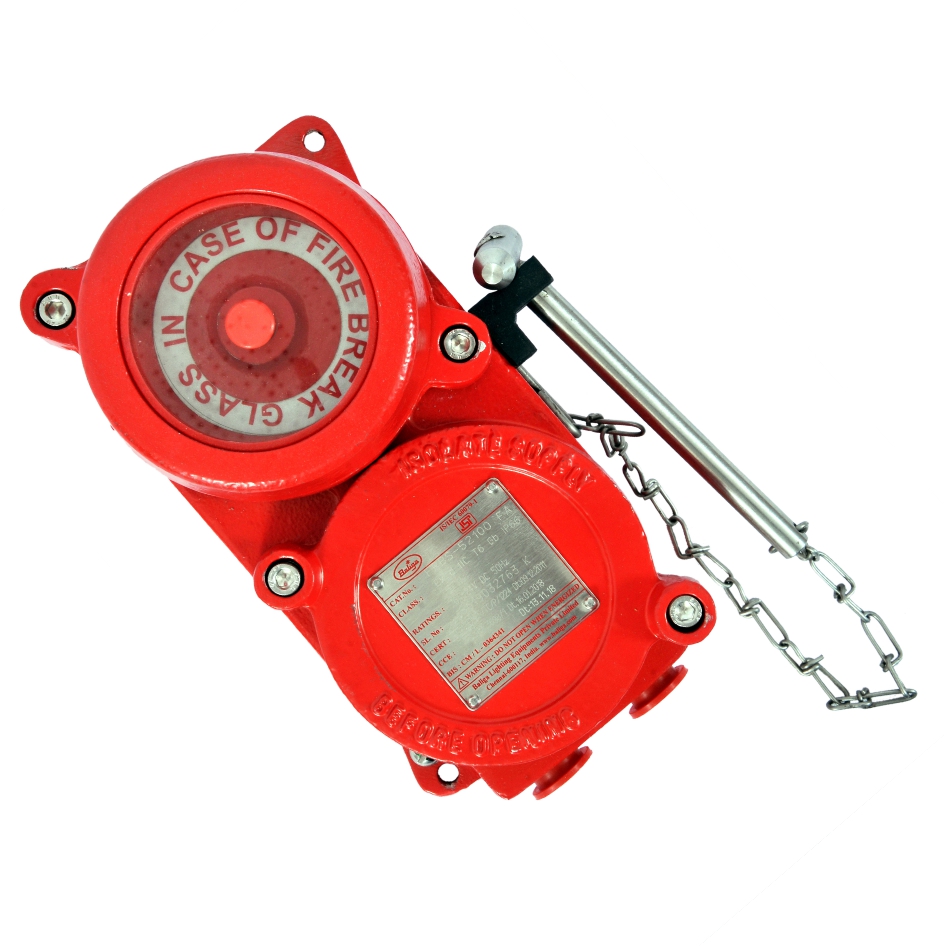

Explosion proof Fire Alarm control station with an integral terminal chamber. A push button actuator with a mushroom head is provided in the main chamber. This actuator is in constant contact with a glass cover which when broken activates the alarm. A single contact element in the main chamber is wired to terminals in the terminal chamber through sealed explosion proof bushings. The alarm station is provided with gaskets for weather proof protection.





In Stock
FPBS 52100 FA

  • Type of protection         : Flame Proof - Exd
  • Area Classification         : Zone 1 & 2
  • Gas Groups                     : Group I, II A ,II B
  • Apparatus Standard       : IS-2148:2004(IEC 60079-1/2001)
  • CIMFR Certificate No.    : CIMFR / TC / SR/H229
  • Approvals                        : CCE

  • Material         : Aluminium LM6
  • Weight           : 3.0 Kg (Approx.,)
  • IP Protection  : IP 65 as per IS-12063/1987 (IEC 60529/1989)
  • Finish              : Anti corrosive epoxy powder coated
  • Cable Entry     : 2 x ¾” ET
  • Gasket            : Neoprene
  • Hardware       : Stainless Steel (SS-304)

  • Contact Element  : INC
  • Rating Voltage     : 500 V, 50 Hz AC
  • Terminals              : 4 x 2.5 sq.mm
  • Earthing                :  External : 2 Nos - M6

                                        :  Internal : 1 No - M5
