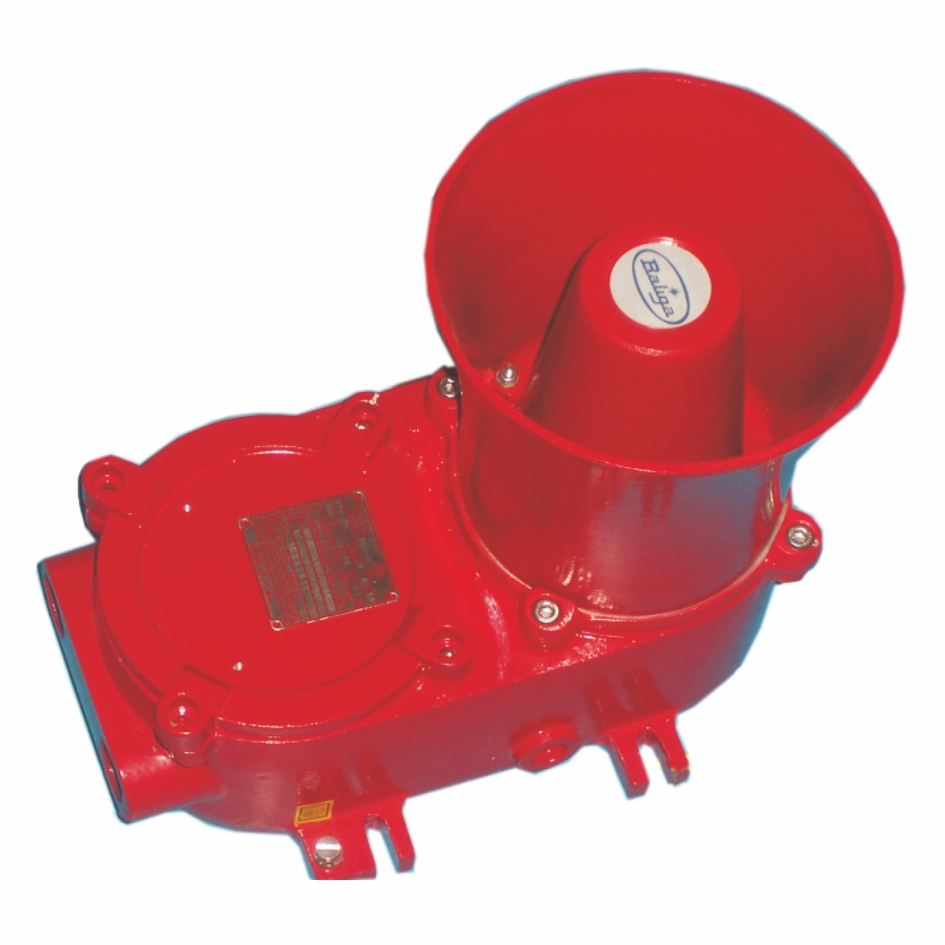

FLAME PROOF HOOTER

Explosion proof cum Intrinsically safe hooter. In the main chamber Intrinsically safe circuit is housed and it is duly wired up to terminal chamber through sealed bushes. The horn unit is placed on the main chamber cover and the output signals are taken through sealed coils. Neoprene ‘ O’ rings are provided for the weather proof protection.

In Stock

FPH 115

Type of protection : Flame Proof - Exd
Area Classification : Zone 1 & 2
Gas groups : Group I, II A, II B, II C
Apparatus Standard : IS-2148/2004, IEC-60079-1(2001)
Temp Rating : T6-85°C
Operating Temperature : -25°C to 55°C
Relative Humidity : 95% @ 40°C
Certification : CIMFR/ERTL
Approvals : CCOE

Material : Cast Aluminium LM 6 (Copper Free)
Weight : 5 Kg (approx.)
IP Protection : IP 66 ,IEC60529 / IS-12063-1987
Finish : Anti corrosive Epoxy - Powder Coated Red/Grey/Other colours available
Cable Entry : 2 x M20
Mounting : Direct mounting on to the ceiling/Wall
Gasket : Neoprene
Hardware : Stainless Steel
Terminals : 4 x 2.5 sq. mm (Single Tone), 5 x 2.5 sq. mm (Dual Tone), 7 x 2.5 sq.mm (Multi Tone)

Voltage : 24 V DC / 400mA 110VAC / 200mA& 230VAC / 130mA
Sound Output : 108 db
Sound Options : Hooter/Howler/Ambulance/Siren
Earthing :
- - External : 2 Nos. - M6
  - Internal : 1 No. - M5
