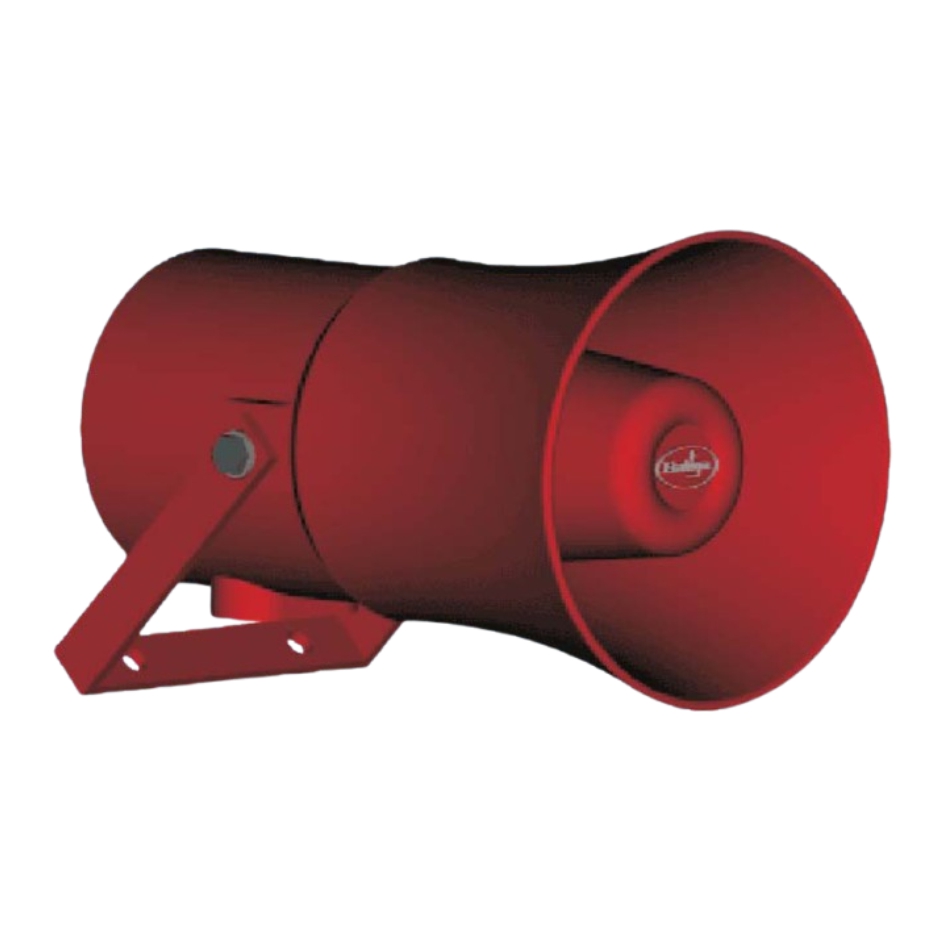

FLAME PROOF LOUD SPEAKER

Explosion proof Loud Speaker. The Unit consists of enclosure housing loud speaker unit with transformer and sounder duly epoxy sealed with thermal fuse protection. The deflector and horn unit is ergonomically & optimally designed to have maximum output. The unit has a 6 way connector with cable entries for wiring through FLP cable glands, and is ready for multi - dropping.

In Stock

FLSR 25

Type of protection : Flame Proof - Exd T6 IP 65
Area Classification : Zone 1 & 2
Gas Groups : Group I, II A, II B & II C
Apparatus Standard : IS-2148:2004(IEC 60079-1/2001)
CMRI Certificate No. : CMRI / TC / S / H1413
Approvals : CCE,BIS

Material : Cast Aluminium LM 6
Weight : 2.5 Kg (approx.)
IP Protection : IP 65 as per IS:13947-1993(IS:12063-1987)
Finish : Anti corrosive Epoxy - Powder Coated, Red (RAL - 3000)
Cable Entry : 2 x ¾” ET
Gasket : Neoprene
Hardware : Stainless Steel

Voltage : 100 V / 70 V Line Transformer
Wattage : 25 W (max.) & 10/ 15 / 20 W Tappings
Sound Output : 115 db
Terminals : 6 way terminal block 2.5 sq. mm
Earthing : Internal : 2 Nos. 2.5 sq. mm
