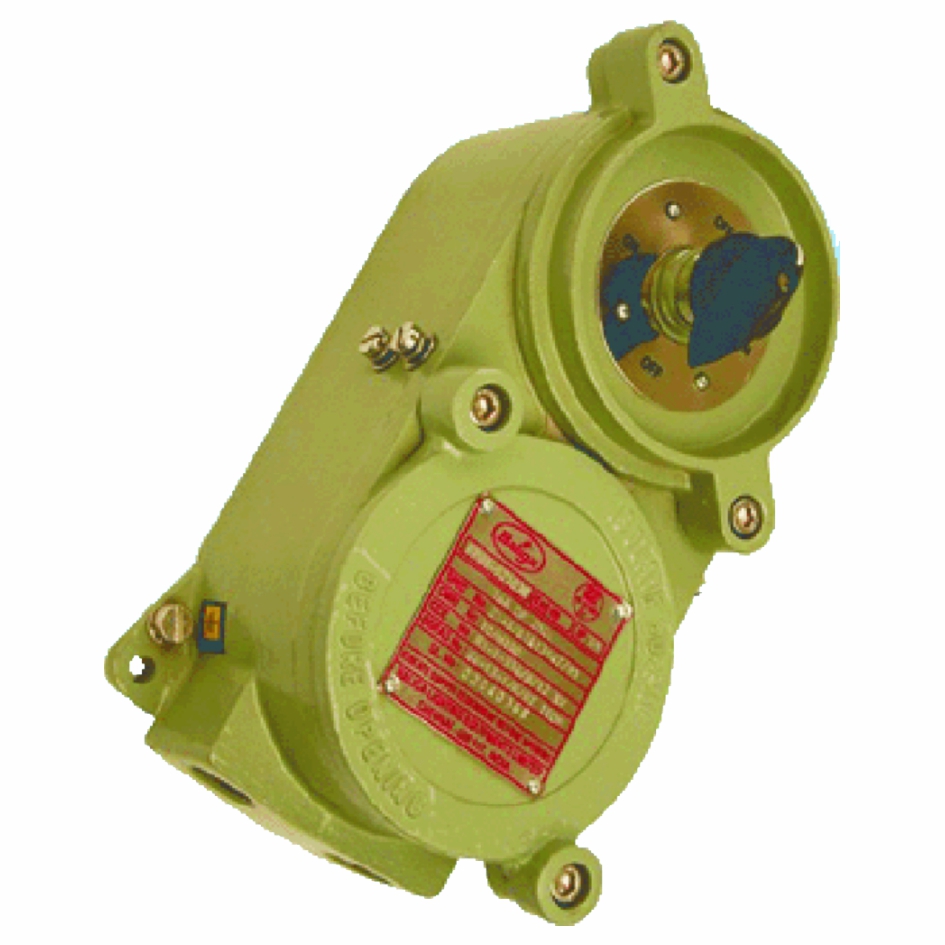

FLAME PROOF ROTARY SWITCH

Explosion proof, rotary on-off switches are basically meant for switching lighting circuits. These high making and breathing capacity switches are placed in a separate enclosure and pre-wired to terminals placed in an integral chamber. The terminal chamber is gasketed to provide a high degree of weather protection.

In Stock

FPBS 52103 R

Type of protection : Flame Proof - Exd
Area Classification : Zone 1 & 2
Gas Groups : Group I, II A ,II B
Apparatus Standard : IS - 2148 / 81
CMRI Certificate No. : V / 1 / 1 / 994
Approvals : CCE,BIS

Material : Aluminium LM6
Weight : 3.8 Kg (Approx.,)
IP Protection : IP 65
Finish : Anti corrosive Epoxy Powder coated
Cable Entry : 2 x (0.75”ET / 0.5” NPT / BSP / M20)
Gasket : Neoprene
Hardware : Stainless Steel

Switch Rating : 4A DP to 16 A DP (240 V AC)
Wiring : PVC insulated 1.5 sq.mm stranded copper
Terminals : Refer the chart below
Earthing :
- - External : 2 Nos - M6
  - Internal : 1 No - M5
