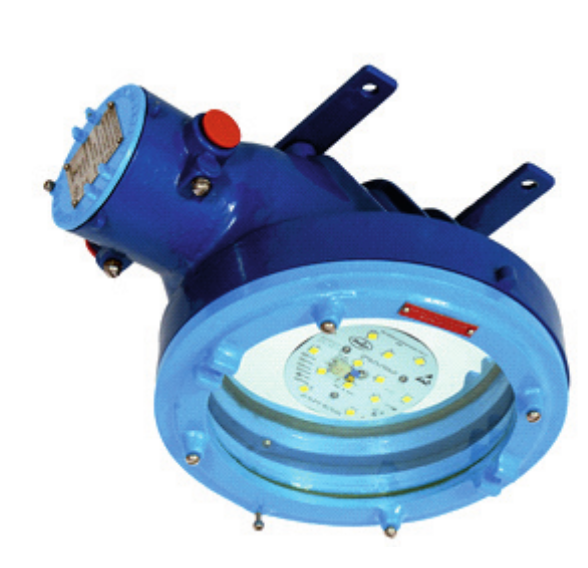

FLAMEPROOF Exd BULK HEAD LUMINAIRE

Explosion Proof LED Luminaires are manufactured in rigid enclosures of light metal Aluminum alloy for better Thermal eﬃciency and with toughened clear glass. The power supply terminals are provided in a separate terminal chamber. Suitable gaskets are provided to ensure weather proof/ ingress protection. This luminaire is available with an integral High-performance eﬃcient and reputed LED Driver.

In Stock

FLPW-1590

Type of protection : Flameproof – Ex d
Gas/ Dust Groups : IIC/IIIC
Suitable for : Zone1, 2, 21 & 22.
Temperature Class : T6/T85°C @ -20°C≤Ta≤+40°C
T5/T100°C @ -20°C≤Ta≤+50°C
T4/ T135°C @-20°C≤Ta≤+60°C
Conformity Standard : IS/IEC 60079-0
IS/IEC 60079-1
IS/IEC 60079-31
IS/IEC 60529
Certiﬁcate CIMFR : CMF 21 INEx 0051
Certiﬁcate PESO : P505966/6
Certiﬁcate BIS : CM/L 0364341

Material : Light Metal Alloy (Al)
Weight : 6 Kg (Approx.)
Finish : Light Grey-631 ( Standard Epoxy powder coated )
Cable Entry : M20 X 1.5P
Glass : Toughened Glass
Gasket : Silicone
Hardware : SS304
Type of Joint : Cylindrical thread

Operating Voltage : 240VAC 50Hz ± 10%
Surge Protection : 4KV Internal + 10KV SPD
Wattage : 26W/30W/36W
Terminals : 2 x 4sq.mm 2Way connector
Earthing : External 2 Nos- M6 Internal 1 No- M5
