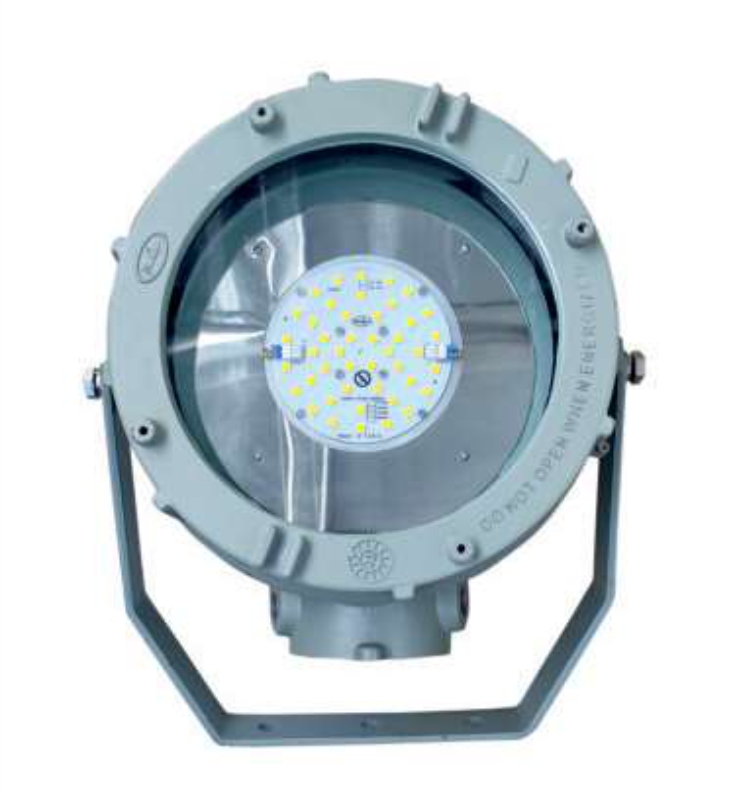

FLAMEPROOF Exd PENDANT/ FLOOD LIGHT LUMINAIRE

Explosion Proof LED Luminaire are manufactured in rigid enclosure of light metal Aluminum alloy for better Thermal efficiency and with toughened clear glass. The power supply terminals are provided in a separate terminal chamber. Suitable gaskets are provided to ensure weather proof/ ingress protection. This luminaire is available with integral High performance efficient and reputed LED Driver.

In Stock

FLPW-2595L

Type or protection : Flameproof- Ex d
Gas/ Dust Groups : IIC/IIIC
Suitable for : Zonel, 2, 21 & 22.
Temperature class : -

Upto 150 W

T6/T85°C @ -20°C≤Ta≤+40°C

T5/T100°C @ -20°C≤Ta≤+50°C

T4/T135°C @-20°C<Ta<+60°C

200 &220W

T5/T100°C @ -20°C≤Ta≤+40°C

T4/T135°C @ -20oC≤Ta≤+50°C

T3/ T200°C @-20°C≤Ta≤+60°C

Conformity Standard
- - - - IS/IEC 60079-0

        IS/IEC 60079-1

        IS/IEC 60079-31

        IS/IEC 60529
Certificate CIMFR : CMF 21 INEx 0051
PESO : P505966/7
BIS : CM/L 0364341

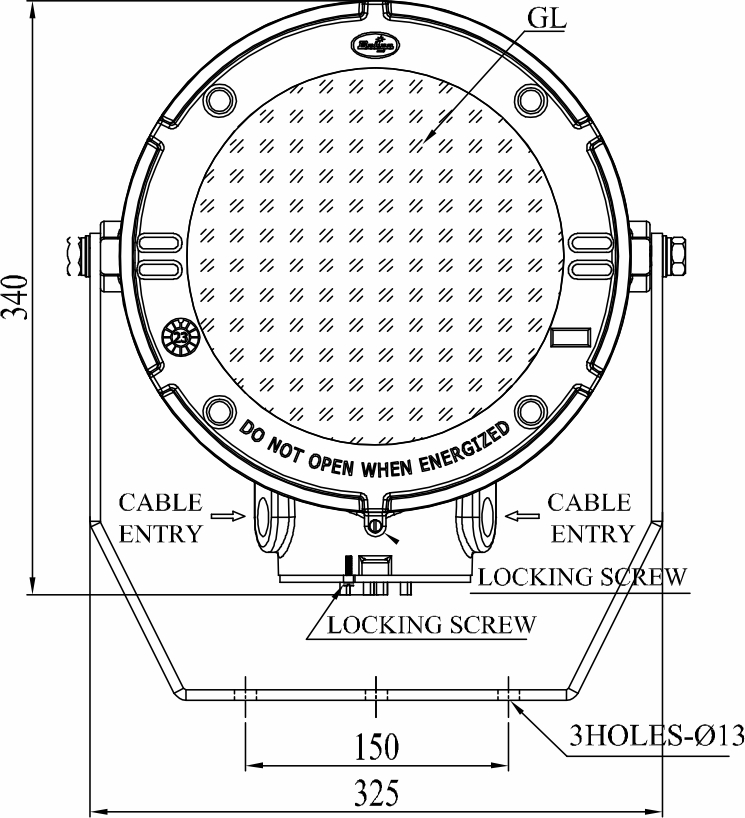

Material : Light Metal Alloy (Al)
Weight : 9Kg (Approx.)
Finish : Light Grey-631 ( Standard Epoxy powder coated )
Cable Entry : M20X 1.5P
Glass : Toughened Glass
Gasket : Silicon
Hardware : SS304
Type of Joint : Cylindrical Thread

Operating Voltage	: 240VAC 50Hz ± 10%
Surge Protection	: 4KV Internal + 1OKV SPD
Wattage	: 72W/90W/100W/120W/150W 200W/220W
Terminals	: 5 x 4sq.mm micro terminal
Earthing	: External 2 Nos - M6, Internal 1 No - M5
Battery Backup	: 30W - Max 30 min
