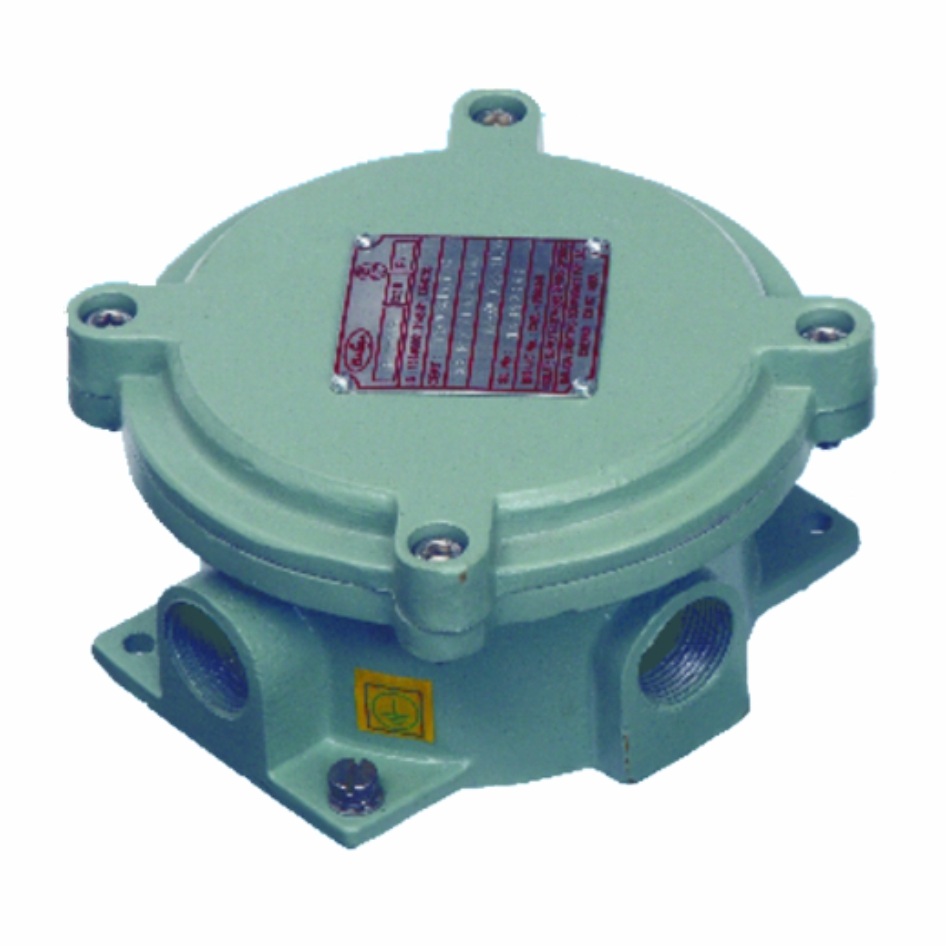

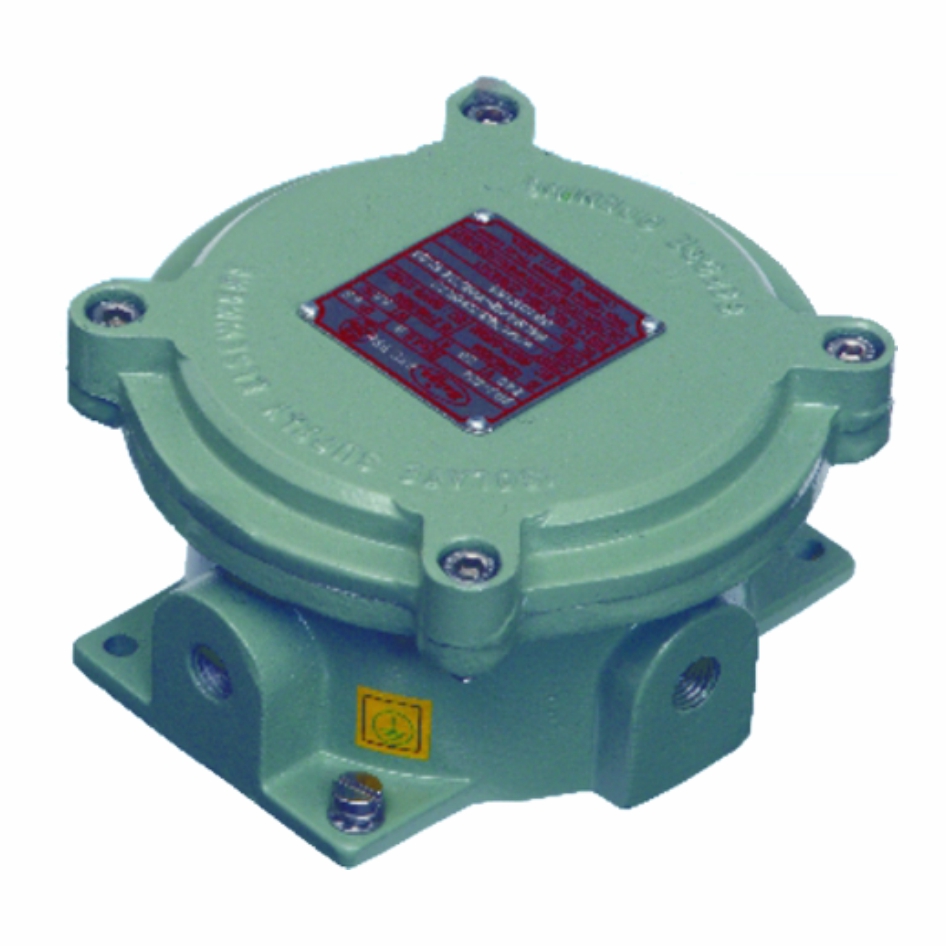

FLAMEPROOF LIGHTING JUNCTION BOX

Explosion proof lighting junction boxes are available in three series with threaded, spigotted or flanged covers. A maximum of 4 entries can be provided in each type of circuit branching. Four way terminal block is provided for termination of the conductors while the covers are provided with high quality gaskets for weather proof protection.

In Stock

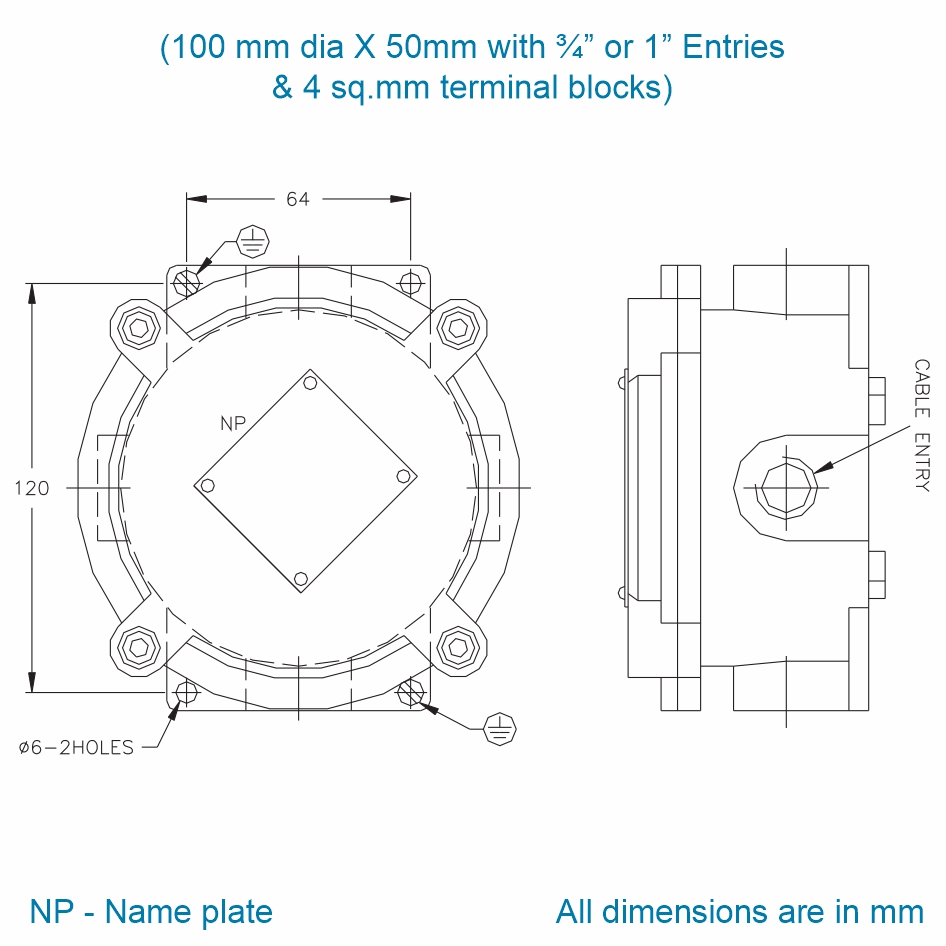

FPJ 400

  • Type of protection : Flame Proof - Exd
  • Area Classification : Zone 1 & 2
  • Gas Groups : Group I, II A ,II B
  • Apparatus Standard : IS:2148-2004 (IEC 60079-1/2001
  • CMRI Certificate No. : CIMFR/TC/SR/H250
  • Approvals : CCE, BIS
Cat.No. Specification
FPJ 402 2 Way (0.75” ET) - Flanged Cover
FPJ 403 3 Way (0.75” ET) - Flanged Cover
FPJ 404 4 Way (0.75” ET) - Flanged Cover
FPJ 412 2 Way (1.0” ET) - Flanged Cover
FPJ 413 3 Way (1.0” ET) - Flanged Cover
FPJ 414 4 Way (1.0” ET) - Flanged Cover

  • Material : Aluminium LM6
  • Weight : 1.4 Kg
  • IP Protection : IP 65 IS:2148-2004 (IEC 60079-1/2001
  • Temperature Class : T6
  • Finish : Anti corrosive Epoxy powder coated
  • Cable Entry : Refer Chart Below
  • Cover Fixing : Threaded
  • Gasket : Neoprene
  • Hardware : Stainless Steel (SS-304)

  • Terminals : 6 nos. 4 sq.mm
  • Earthing :
      • External : 2 Nos - M6
      • Internal : 1 No - M5

Cable Entry Chart

BSC NPT / BSP Metric (mm)
0.50 0.25 M 16 X 1.5
0.75 0.50 M 20 X 1.5
1.00 0.75 M 25 X 1.5

Entry Size (Inches)
